Deep Groove Ball Bearings

Update Time 2022-04-27 10:39 Read 83

Deep groove ball bearings, which are widely used, are the most representative structure of rolling bearings. This type of bearing can carry not only radial load but also axial load from two directions. Featured with small friction torque, deep groove ball bearings are quite suitable for the circumstances of high speed, low noise and slight vibration. Deep groove ball bearings are widely used in the fields of automobiles, electrics, instruments, construction machineries, agricultural machineries, and many kinds of special machineries. These bearings, with various specifications, are usually divided into open type and sealed type.

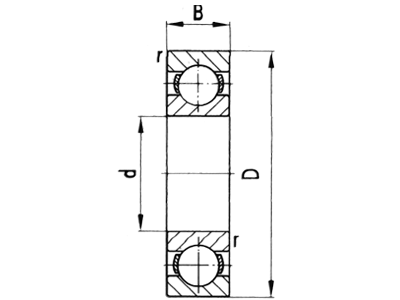

Designations	d	D	B	H	T	r min	Dynamic(C)	Static(Co)	Grease	Oil	Weight(kg)
6024	120	180	28			2	88	80		7500	2.05
16024	120	180	19			1.2	63.7	64		7500	1.6
61926	130	180	24			1.5	49	50.6	3400	4000	1.854
61928	140	190	24			1.5	50	54	3200	3800	2.045
61936	180	250	33			2	89	96	2200	2600	5.27
61938	190	260	33			2	97.5	103	2200	2600	5.86
61840	200	250	24			1.5	55.5	74	2200	2600	2.73
61844	220	270	24			1.5	57.4	80	1900	2400	2.9
61944	220	300	38			2.1	136	162	1900	2400	7.96
6044	220	340	56			3	240	287	1800	2200	18.8
6244	220	400	65			4	324	358	1500	1800	31.2
61948M	240	320	38			2.1	117	182	1800	2200	8.6
16048	240	360	37			2.1	147	182	1700	2000	14.89
6048M	240	360	56			3	255	315	1700	2000	20.7

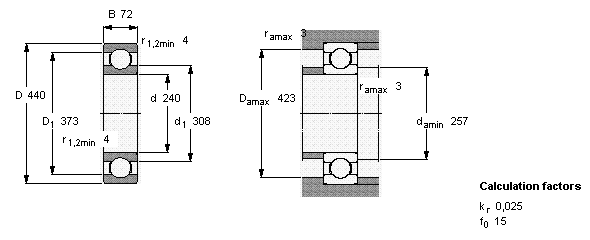

6248	240	440	72			4	271	461	1300	1600	51.8
61852M	260	320	28			2	92	125	1700	2000	4.85

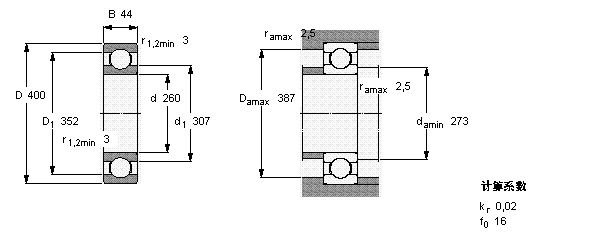

16052MA	260	400	44			7.2	238	310	2000	2600	22.5
6052M	260	400	65			4	288	367	1500	1800	28.8
6252M	260	480	80			5	390	530	2400	2600	65.5
61956M	280	380	46			2.1	162	276	1500	1800	15.6

Designations	d	D	B	H	T	r min	Dynamic(C)	Static(Co)	Grease	Oil	Weight(kg)
61860M	300	380	38			2.1	125	175	1400	1700	10.04
61960M	300	420	56			3	201	363	1300	1600	20.7
16060M	300	460	50			4	255	363	1200	1500	33.1
6060M	300	460	74			4	350	466	1200	1500	48.4
61864M	320	400	38			2.1	119	216	1300	1600	11.1
61964M	320	440	56			3	210	387	1300	1600	24.9
6064M	320	480	74			4	260	500	1100	1400	50.3
61968M	340	460	56			3	276	412	1100	1400	27
61872M	360	440	38			2.1	126	242	1100	1400	12.2
6072M	360	540	82			5	304	608	1000	1300	65.3
61876M	380	480	46			2.1	210	308	1000	1300	19
61976M	380	520	65			4	261	539	1000	1300	39.8
61980M	400	540	65			4	268	570	950	1200	39.4

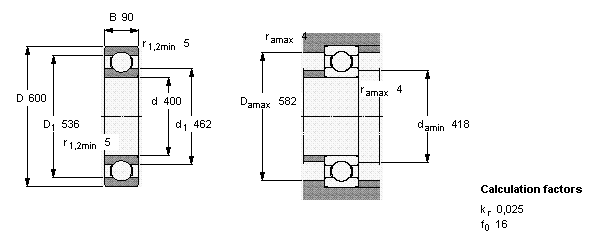

6080M	400	600	90			5	363	764	900	1100	86.5
61988M	440	600	74			4	286	635	900	1100	60.5

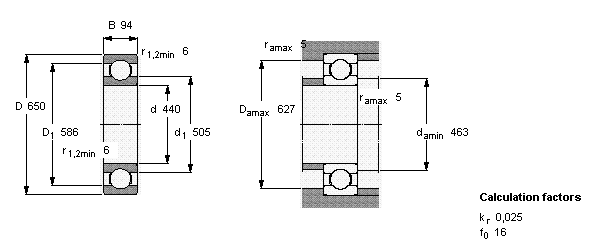

6088M	440	650	94			6	382	862	850	1000	108
61992M	460	620	74			4	293	664	850	1000	63
619/500MA	500	670	78			5	298	702	750	900	77

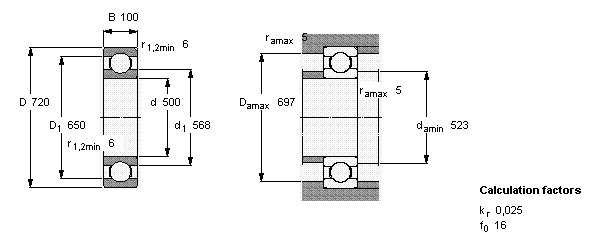

60/500	500	720	100			6	407	1005	750	900	135
618/850	850	1030	82			5	420	1278	450	530	144

Designations	d	D	B	H	T	r min	Dynamic(C)	Static(Co)	Grease	Oil	Weight(kg)
618/1000	1000	1220	100			6	637	1800	340	400	245
618/1180M	1180	1420	106			6	696	2528	320	360	310
